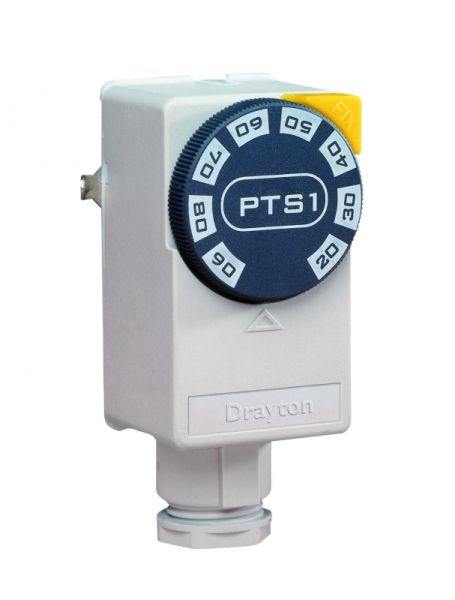

For applications like as high or low limits, the PTS1 Pipe Thermostat can be used in both household and commercial settings. Typically used in conjunction with the Drayton RTS3 air frost thermostat to provide two-stage frost protection for boilers and exposed pipework Setting Range is from 20 to 90°C Ambient temperature from -35 to 120°C SPDT volt-free switch type Lockable setting knob (supplied) IP40 rated Concealed cover fixing screw Fixing wire supplied Liquid sensing element High or low limit applications.

• Frost protection solution when used in conjunction with the RTS3 air frost thermostat
• Changeover contacts
• Lockable setting knob
• High or low-limit applications
• Conduit adaptor and gland seal
• IP40 rated
• Concealed cover fixing screw
• Fixing wire supplied
• Liquid sensing element
• High or low-limit applications

Country Origin	UK
Manufacturer Model No	301260
Brand Name	Drayton
Range Description	PTS1 Pipe Thermostat
Depth	55 mm
Height	95 mm
Width	40 mm
Digital or Analogue	Analogue
Voltage	230 V
Wired or Wireless	Wired
Colour	White
Type	Pipe Thermostat
