Description

FAKRO FSR P2 Smoke Ventilation Systems for Pitched Roofs in Natural Pine

Don't forget to order the flashing for your FAKRO roof window, click this link.

We list the top 4 windows sizes, all are available just click on 'Message us' for more discounted prices.

Free delivery where the order value is £440 or more.


Smoke and fire pose significant risks to human life and property. Contrary to common perception, most fire-related fatalities (90%) result from inhaling smoke, not burns or high temperatures. Smoke also causes significant property damage. Implementing appropriate smoke and heat escape systems can greatly reduce the dangers of high concentrations of smoke and heat. One example of such a system is the FSR window, which, when combined with smoke sensors and smoke vent alarm buttons, creates a gravity-based system for extracting smoke and heat. This system is widely used in public buildings such as stairwells, hotels, multi-family buildings, and more.

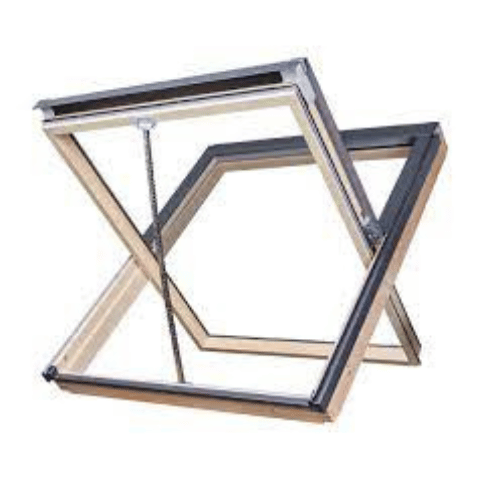

CENTRE PIVOT SMOKE VENT WINDOW

• High-quality close-grain vacuum-impregnated pine is guaranteed to be knot-free and finished with natural lacquer.

FSR P2 10 (114 x 118cm)

• Single centre-pivot window with electrics pack and flashing kit giving 1.0m2 of ventilation.
• 1no FSR P2 10 114 x 118cm + fitted chain actuator
• 1no Flashing Kit
• 1no RZN 4503-T Control Unit
• 1no 12v 3.2amp battery backup pack
• 1no RT45 break glass alarm
• 1no SD-O-371 smoke detector

FSR-2 P2 2 x 07 (78 x 140cm)

• 2no centre pivot windows with electrics pack and flashing kit giving 1.5m2 of ventilation.
• 2no FSR P2 07 78 x 140cm + fitted chain actuator
• 1no B2/1 Combination Flashing Kit (100mm gutter)
• 1no RZN 4503-T Control Unit
• 1no 12v 3.2amp battery backup pack
• 1no RT45 break glass alarm
• 1no SD-O-371 smoke detector

FSR P2 17 (134 x 140cm)

• Single centre-pivot window with electrics pack and flashing kit giving 1.5m2 of ventilation.
• 1no FSR P2 17 134 x 140cm + fitted chain actuator
• 1no Flashing Kit
• 1no RZN 4503-T Control Unit
• 1no 12v 3.2amp battery backup pack
• 1no RT45 break glass alarm
• 1no SD-O-371 smoke detector

PLEASE ADVISE THE FLASHING KIT TYPE REQUIRED AT THE TIME OF ORDER.
